Engineering Services brings together practical engineering knowledge that supports real projects, real constraints, and real outcomes.
This category covers how engineering services are applied across design, verification, upgrades, and construction support, with a focus on mechanical and structural engineering in existing and live environments. Topics include engineering decision-making, design development, compliance considerations, and how engineering integrates with 3D scanning, CAD modelling, and as-built documentation.
Articles explain what professional engineering input actually delivers—helping project teams reduce risk, improve buildability, and make informed decisions based on accurate data and sound engineering judgement, not assumptions.
Content is written for asset owners, project engineers, builders, and contractors who want a clearer understanding of how engineering services add value across power, manufacturing, mining, and building & construction projects.
If an environment is uncomfortable, poorly lit, or outdated — people will choose to work from home.
But when a workplace is well-designed, functional, and comfortable:
People actually want to be there.
One of the most overlooked factors in this shift is lighting design.
Lighting Directly Impacts Performance
Lighting is not just about visibility — it directly impacts how people feel and perform.
Poor lighting can lead to:
Eye strain
Fatigue
Reduced concentration
Increased safety risks
Whereas well-designed lighting delivers:
Consistent illumination
Reduced glare
Improved visibility of screens and equipment
A more comfortable and professional environment
Engineering the Outcome with AGi32
At Hamilton By Design, we support lighting designers using AGi32 to simulate and validate lighting performance before installation.
This allows us to:
Predict light levels across the entire space
Identify dark zones and over-lit areas
Optimise fixture placement
Validate compliance with lighting standards
👉 Instead of guessing — we engineer the outcome.

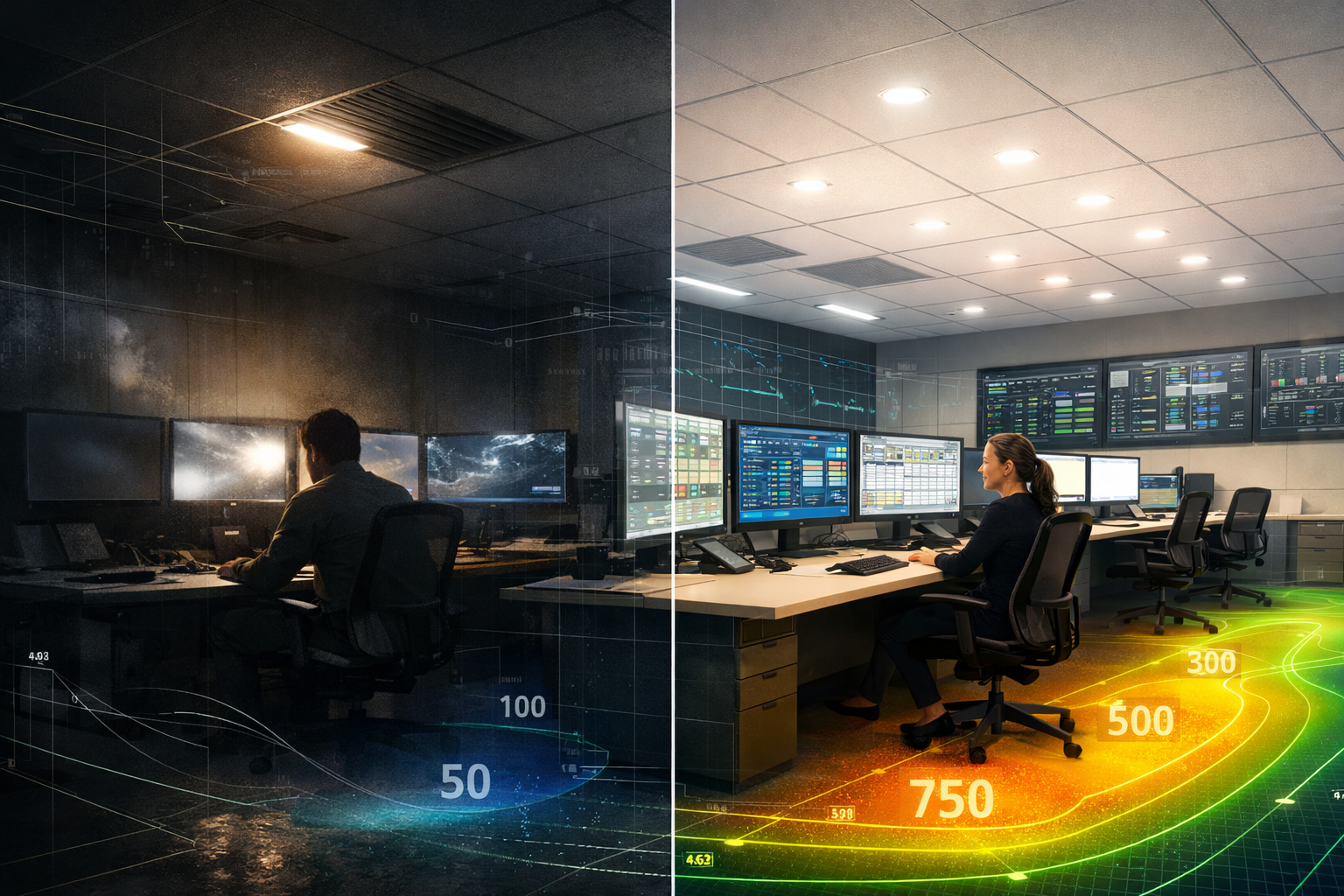

Real-World Application: Control Room Upgrade
In a recent Brisbane project, we developed a 3D AutoCAD model from LiDAR scan data to support lighting design in AGi32 .
The objective was not just compliance — but improving the working environment inside a live operational space.
This included:
Accurate modelling of walls, desks, and equipment
Providing a clean, lightweight model for simulation
Supporting lighting redesign based on how the space is actually used today
This workflow typically starts with engineering-grade 3D laser scanning, ensuring the environment is captured accurately before any design work begins.
Designing for How People Work Today
Many facilities haven’t changed structurally — but the way people use them has.
Chute Blockages and Build-Up in Mining Plants| Hamilton By Design Co.
Transfer chute blockages and material build-up are some of the most common and costly problems in mining and bulk materials handling plants. A chute may look simple on paper, but in real operations it must control the flow of difficult materials under changing conditions, often within tight brownfield constraints.
When a chute begins to block, pack up, or accumulate build-up, the result is rarely limited to one small maintenance issue. Restricted flow can lead to reduced plant throughput, unplanned stoppages, excessive wear, spillage, dust, manual clean-outs, and increased shutdown risk.
At Hamilton By Design Co., we use engineering-grade 3D laser scanning, point cloud to CAD modelling, and practical mechanical design workflows to help clients understand why existing transfer chutes are failing and how those problems can be addressed with real-world upgrade solutions.
Why Transfer Chutes Block in Real Plants
A transfer chute does more than direct material from one conveyor to another. It must manage the velocity, direction, confinement, and discharge of a bulk solid that may behave very differently from day to day.
In theory, material should flow cleanly through the chute and load the receiving belt in a controlled manner. In practice, that often does not happen.
Blockages and build-up usually develop because of one or more of the following conditions:
Sticky or wet material
High fines content
Poor internal chute geometry
Dead zones or low-velocity regions
Sudden changes in direction
Inadequate clearances
Existing plant modifications not shown on old drawings
Wear plates or liners altering the internal flow path over time
This is one of the key lessons from bulk solids handling literature and modern transfer chute simulation work: a chute should be treated as a flow system, not just fabricated steelwork. If the bulk material is not guided correctly, the chute can quickly become the source of recurring reliability issues.
Common Signs of Chute Blockages and Build-Up
Many transfer chutes continue operating badly for months or years before a proper redesign is considered. The warning signs are often already there:
Frequent clean-outs
Operators or maintenance crews may need to manually remove compacted or hung-up material from inside the chute or around discharge points.
Reduced throughput
Partial restriction can reduce the chute’s effective flow area, limiting plant performance without always producing a full blockage.
Spillage and dust
As the internal flow path changes, material may discharge poorly, generating side loading, skirt leaks, and fugitive dust.
Uneven wear
Material build-up often redirects flow, concentrating abrasion and impact into localised wear zones.
Belt loading problems
A blocked or partially restricted chute can cause off-centre loading, surging, or unstable discharge onto the receiving conveyor.
Shutdown surprises
A chute that “kind of works” during operation may become a major problem during shutdown replacement or upgrade works when its actual geometry and surrounding interfaces are finally exposed.
Why Old Drawings Often Do Not Tell the Full Story
One of the most common issues in brownfield mining plants is that the existing chute does not match the drawings.
Over time, sites are modified. Liners are changed. Plates are added. Wear zones are patched. Access platforms are altered. Guards move. Structural members are added or cut back. Conveyor details are updated but not always captured in the plant model.
As a result, a design team can be asked to solve a blockage problem using information that is incomplete, outdated, or simply wrong.
This is where 3D laser scanning of the existing chute and surrounding plant becomes highly valuable. Instead of relying on assumptions, the project can begin with measured site reality.
How 3D Laser Scanning Helps Diagnose Chute Problems
3D laser scanning allows existing transfer stations, chute structures, conveyors, supports, platforms, and surrounding equipment to be captured accurately as an as-built point cloud.
This gives engineers and plant teams a much better starting point for understanding blockage and build-up issues.
With a high-quality site capture, it becomes easier to:
Verify the true chute geometry
Check whether the internal chute path matches legacy drawings
Measure clearances around the chute and conveyors
Identify brownfield constraints that will affect upgrades
Capture surrounding steelwork, guards, supports, access ways, and services
Build a reliable CAD base for redesign or shutdown planning
Reduce fit-up risk before fabrication
For blocked or restricted transfer points, this matters because the problem is rarely isolated to one plate or one wear liner. The full transfer arrangement often needs to be understood in context.
Point Cloud to CAD for Chute Upgrade Projects
Once the existing chute and surrounding transfer area have been scanned, the point cloud can be converted into useful engineering models and drawing outputs.
Depending on project requirements, this may include:
Existing arrangement models
AutoCAD model space layouts
General arrangement drawings
Section views through critical transfer zones
Conveyor interface checks
Structural and access reference models
Base geometry for redesign concepts
This step is important because scanning alone does not solve the problem. The value comes from turning measured site conditions into a workable engineering model that supports analysis, redesign, communication, and project delivery.
Typical Causes of Chute Build-Up
No two plants are identical, but the same broad patterns appear again and again in mining and bulk materials handling systems.
Poor chute geometry
Flat ledges, abrupt transitions, internal obstructions, and shallow flow surfaces can create low-energy zones where material begins to hang up.
Material variability
A chute may perform reasonably with dry product but fail badly when moisture, fines content, or feed consistency changes.
Wear changing the flow path
As liners wear, the material trajectory and internal contact pattern can change. In some cases, past repairs can unintentionally make the problem worse.
Inadequate discharge control
If the material is not being guided cleanly through the chute, unstable flow can create recirculation, impact concentration, and inconsistent discharge onto the receiving belt.
Brownfield constraints
Legacy chute geometry is often shaped by what could fit at the time, not by what offered the best flow. This is especially true where upgrades have been added over many years.
A Practical Engineering Approach
At Hamilton By Design Co., we see chute blockage problems as both a materials handling issue and a brownfield engineering issue.
That means the practical workflow is often:
1. Capture the existing transfer area
We scan the chute, conveyors, structure, and surrounding plant to create an accurate as-built record.
2. Build the engineering base model
We convert the point cloud into usable CAD references for design, review, and planning.
3. Understand the real constraint
We assess what the current chute is doing, what clearances exist, and where the upgrade risks are likely to sit.
4. Support redesign and upgrade works
The as-built data can then be used to support mechanical design, chute modification concepts, shutdown planning, and fabrication fit-up.
This practical approach is especially useful where the site is already experiencing recurring clean-outs, ongoing maintenance cost, or uncertainty around existing geometry.
Where This Applies
This type of work is relevant across a wide range of bulk materials handling environments, including:
Coal handling plants
Hard rock mining operations
Quarry transfer systems
Materials handling conveyors
Process plant transfer stations
Brownfield chute replacement projects
Why This Matters
Transfer chutes are often underestimated. A poorly performing chute can quietly create lost production, repeated maintenance, high cleanup cost, and shutdown complications for years.
The real lesson from bulk solids handling practice is that a chute should not be designed or upgraded as just a fabricated box. It must be understood as part of a controlled material flow system, operating within the real physical constraints of the plant.
When those constraints are not fully understood, blockage and build-up problems tend to repeat.
That is why 3D laser scanning, point cloud to CAD modelling, and measured as-built engineering data are such valuable first steps in solving restricted or unreliable transfer points.
Need Support with an Existing Chute Problem?
If your site is dealing with chute blockages, material build-up, inaccurate plant drawings, or shutdown upgrade risk, Hamilton By Design Co. can help capture the existing conditions and provide an engineering-ready base for the next stage of the project.
We support mining and industrial clients with:
3D laser scanning of existing plant
Point cloud to CAD conversion
Existing condition modelling
Brownfield upgrade support
Chute and transfer station design workflows
Contact Hamilton By Design Co. to discuss your existing chute, transfer point, or scanning requirement.
Sydney industrial sites often involve tight shutdown windows, congested plant areas, ageing infrastructure and limited tolerance for error. Our industrial 3D scanning Sydney service helps project teams capture accurate site conditions before design, fabrication and installation begin.
At Hamilton By Design Co., we provide 3D scanning services in Sydney for mining infrastructure, conveyors, transfer chutes, processing plants, workshops and heavy industrial assets. By converting existing conditions into reliable point cloud data, we help reduce rework, improve fit-up accuracy and support better engineering decisions.
Learn more about our core Sydney scanning capability here:
Engineering-grade scanning delivers measurable geometry — not just visuals — enabling confident decision-making across design, fabrication and construction workflows.
Industrial facilities evolve over time. Steelwork is modified, equipment is relocated, and plant layouts drift away from original drawings. This creates significant risk when new components must fit within existing infrastructure.
Our scanning process captures real-world site geometry so engineers and project teams can work from current conditions.
This is especially valuable where:
shutdown durations are limited
access is restricted
plant environments are congested
existing drawings are outdated or unreliable
fabrication accuracy is critical
For a broader overview of how this applies across Sydney projects:
This page is specifically positioned for mining, bulk materials handling and heavy industrial applications in Sydney.
Typical systems include:
conveyor systems
transfer chutes
processing infrastructure
maintenance shutdown zones
structural interfaces for upgrades
Hamilton By Design combines engineering expertise with LiDAR scanning and 3D modelling to support plant design, retrofits and digital engineering workflows.
Supporting Shutdowns and Plant Upgrades
Shutdown work carries high risk and tight time constraints. Accurate as-built data reduces uncertainty before fabrication and installation.
Our industrial 3D scanning Sydney service helps teams:
Industrial 3D scanning uses laser scanners to capture accurate measurements of plant, structures and equipment, creating a point cloud for engineering use.
Can you scan conveyors and transfer chutes?
Yes — conveyors, chutes and bulk materials handling systems are a core application.
Is this useful for shutdowns?
Yes — scanning allows capture during shutdown and continued engineering work afterwards.
Can the data be used for CAD?
Yes — scan data supports 2D drawings, 3D models and fabrication workflows.
Related Sydney Services
Hamilton By Design provides engineering-led 3D scanning, LiDAR scanning, mechanical engineering and digital engineering services throughout Sydney and Greater Sydney.
Explore our related Sydney services:
3D Scanning Sydney – Engineering-grade terrestrial laser scanning, as-built surveys and point cloud capture for industrial, infrastructure and commercial projects.
Reality Capture Sydney – High-accuracy reality capture, digital twins, asset documentation and engineering-grade site verification.
Scan to CAD Sydney – Convert point cloud data into AutoCAD, SolidWorks, Inventor and other engineering-ready CAD deliverables.
Point Cloud Modelling Sydney– Engineering-grade point cloud processing, clash detection, as-built verification and 3D modelling.
Mechanical Engineering Sydney – Mechanical design, plant upgrades, materials handling systems, conveyors, chutes, platforms and engineering support.
Structural Drafting Sydney– Structural steel drafting, fabrication drawings, GA drawings, workshop detailing and as-built documentation.
Hamilton By Design supports projects throughout Sydney CBD, Parramatta, Liverpool, Penrith, Blacktown, Chatswood, Alexandria, Mascot, Newcastle and the Central Coast.
Mining Conveyor Engineering Design | Digital Engineering for Materials Handling Systems
Conveyor systems form the backbone of many mining and industrial processing operations. From coal handling plants and mineral processing facilities to port loading infrastructure, conveyors and transfer systems move large volumes of material continuously throughout the plant.
As mining infrastructure becomes more complex, engineering teams increasingly rely on digital engineering workflows to design, upgrade and maintain conveyor systems. These workflows combine laser scanning, point cloud modelling and 3D engineering design to improve accuracy and reduce project risk.
Digital engineering allows engineers to capture existing plant conditions, develop accurate engineering models, and design modifications with confidence before construction or shutdown activities begin.
The Role of Conveyor Engineering in Mining Operations
Conveyors transport bulk materials between key processing areas such as crushers, screens, stockpiles and ship loading systems. Because these systems operate continuously, even small design issues can cause major operational problems.
Common engineering challenges include:
transfer point blockages
excessive belt wear
material spillage and dust generation
structural fatigue in conveyor galleries
poor maintenance access
Effective mining conveyor engineering design focuses on improving reliability, safety and maintainability while ensuring the system integrates correctly with the surrounding plant infrastructure.
For further information on mechanical engineering services supporting mining operations see: ➡ Hamilton By Design Co. –
Traditional conveyor design often relied on outdated plant drawings or manual site measurements. However, many mining facilities have undergone decades of modifications, meaning the original design documentation no longer reflects the actual plant layout.
Modern engineering teams now use laser scanning and point cloud modelling to capture accurate representations of plant infrastructure.
These digital datasets allow engineers to develop detailed models of:
conveyor structures and galleries
transfer chutes and material flow points
structural steel platforms and walkways
access ladders and maintenance areas
surrounding plant equipment
By converting scan data into engineering models, designers can evaluate system upgrades with far greater accuracy.
Learn more about how scan data is converted into engineering models here:
Many conveyor upgrades are implemented during planned shutdowns where plant equipment must be isolated for maintenance or replacement.
During these shutdown windows engineers may install:
replacement transfer chutes
new conveyor sections
structural modifications
upgraded dust control systems
improved maintenance access platforms
Because shutdown windows are often limited to a few days, engineering design must be completed and validated before work begins.
Digital plant models allow engineers to confirm equipment clearances, identify potential clashes and develop fabrication drawings prior to the shutdown period.
More information on shutdown engineering preparation can be found here:
Transfer Chute Design in Materials Handling Systems
Transfer chutes are critical components in conveyor systems because they control the flow of material between conveyors or processing equipment.
Poor chute design can lead to:
material buildup and blockages
uneven belt loading
excessive dust generation
increased wear on belts and liners
Using digital plant models, engineers can analyse the surrounding infrastructure and design chute geometries that improve material flow and reduce maintenance issues.
Benefits of Digital Engineering for Materials Handling Systems
Digital engineering workflows provide several key advantages for mining infrastructure projects:
Improved design accuracy Accurate plant models reduce errors caused by outdated drawings or incomplete measurements.
Reduced installation risk Engineering models allow equipment fit-up to be verified before fabrication and installation.
Faster project delivery Engineering teams can plan upgrades more efficiently using digital plant models.
Improved maintenance planning Digital models support better access design and long-term asset management.
The Future of Conveyor Engineering
As mining operations continue to adopt digital engineering technologies, the design and maintenance of conveyor systems is becoming increasingly data-driven.
Technologies such as:
3D laser scanning
point cloud modelling
digital twins
engineering simulation
are helping engineers develop more reliable materials handling systems and reduce operational downtime.
For mining operators planning plant upgrades or shutdown maintenance, integrating digital engineering into conveyor design workflows is becoming an essential part of modern infrastructure planning.
Point Cloud to Engineering Model for Mining Infrastructure
Modern mining infrastructure is complex, constantly evolving, and rarely matches the original construction drawings. Over decades of plant upgrades, maintenance work, and operational modifications, the physical layout of conveyors, chutes, platforms, and structural steel often diverges significantly from historical design documentation.
For engineering teams planning plant upgrades or shutdown work, accurate site information is essential. One of the most effective ways to capture this information is through laser scanning and point cloud modelling, which allows engineers to convert real-world infrastructure into detailed digital engineering models.
The process of converting point cloud mining infrastructure data into engineering models is now widely used across the mining and bulk materials handling industries.
What Is a Point Cloud in Mining Infrastructure?
A point cloud is a dense collection of spatial measurements captured using 3D laser scanning equipment. Each point represents a precise location in space, allowing engineers to reconstruct the geometry of plant infrastructure with extremely high accuracy.
When scanning a mining facility, the point cloud may capture:
Conveyors and transfer stations
Structural steel platforms and walkways
Crushers, screens and processing equipment
Stockpile reclaim systems
Pipework and mechanical installations
Port and ship loading infrastructure
These datasets can contain millions or even billions of measurement points, forming a highly accurate digital representation of the plant environment.
Converting Point Clouds into Engineering Models
While point clouds provide valuable measurement data, they are not directly usable for engineering design. Engineers must convert the scan data into structured mechanical and structural models that can be used for analysis, fabrication and construction planning.
The typical engineering workflow includes:
1. Site Laser Scanning
The plant is scanned using high-accuracy laser scanning equipment to capture the geometry of existing infrastructure.
2. Point Cloud Processing
The raw scan data is registered and combined to form a unified point cloud representing the entire plant area.
3. Engineering Modelling
Engineers interpret the point cloud and convert key infrastructure elements into CAD models including:
Structural steel frameworks
Conveyor structures and galleries
Transfer chutes
Access platforms and walkways
Mechanical equipment interfaces
4. Engineering Design and Upgrades
The resulting model allows engineers to design plant modifications with confidence, ensuring equipment fits correctly within the existing infrastructure.
This workflow significantly reduces installation risk during shutdowns and upgrade projects.
For further information on mechanical engineering services for mining plants see:
Mining plants frequently undergo upgrades to improve reliability, throughput and maintenance access. Many of these upgrades are installed during planned shutdowns where downtime must be carefully controlled.
By developing accurate engineering models from point cloud data, engineers can:
Confirm clearances for new equipment
Identify potential clashes before fabrication
Design replacement transfer chutes and conveyors
Validate structural modifications
Improve maintenance access systems
These digital engineering models are particularly valuable for shutdown preparation.
More information about this process can be found here:
Transfer Chutes and Materials Handling Infrastructure
Transfer chutes are one of the most common areas requiring modification in coal handling plants and mining infrastructure. Poorly designed chutes can lead to excessive belt wear, blockages, dust generation and maintenance challenges.
Using point cloud models, engineers can analyse the surrounding infrastructure and design improved chute geometries that integrate correctly with existing conveyors and structures.
Engineering Applications Across Mining Infrastructure
The conversion of point clouds into engineering models is now widely used across many mining environments.
Common applications include:
Coal handling plants
Bulk materials handling infrastructure
Processing plants and concentrators
Port loading facilities
Conveyor systems and transfer stations
Industrial processing plants
By capturing existing infrastructure digitally, engineers can develop highly accurate models that support plant upgrades, shutdown planning and long-term asset management.
The Future of Digital Engineering in Mining
As scanning technology continues to improve, point cloud modelling is becoming a core component of modern mining engineering workflows.
The ability to convert real-world infrastructure into precise digital models allows engineers to design upgrades more efficiently, reduce installation risk and improve plant reliability.
For mining operators and engineering teams planning infrastructure upgrades, the integration of laser scanning, point clouds and engineering modelling is transforming how projects are designed and delivered.
Planned shutdowns are a critical part of maintaining reliability in coal handling plants, port infrastructure, and large industrial facilities. During these scheduled outages, engineers must inspect, upgrade, or replace equipment across complex mechanical systems including conveyors, transfer chutes, crushers, and structural infrastructure.
Effective coal plant shutdown engineering focuses on preparation before the shutdown begins. Accurate plant data, detailed engineering models, and well-planned maintenance activities allow shutdown teams to complete work safely and within tight time windows.
Shutdown planning is essential because many maintenance activities must be performed while equipment is offline, often under strict time constraints with multiple trades working simultaneously. Without careful planning, shutdowns can quickly become unsafe, inefficient, or costly.
Why Engineering Preparation Matters
Coal processing plants operate continuously for long periods. Over time equipment is modified, upgraded, or repaired during multiple shutdown cycles. As a result, the original plant drawings often no longer represent the true layout of the facility.
Before a shutdown begins, engineering teams must confirm:
Existing conveyor alignments
Transfer chute geometry
Structural steel clearances
Access platforms and walkways
Equipment interfaces and installation areas
Modern engineering teams increasingly rely on laser scanning and digital modelling to capture the exact geometry of existing infrastructure. This produces a high-resolution point cloud of the plant that can be used to develop accurate engineering models before modifications begin.
These models allow engineers to validate equipment installations and reduce risk during the shutdown window.
The Role of Engineering Scanning Services
Engineering scanning services are now widely used across mining and industrial sectors to support shutdown planning.
Laser scanning technology can capture millions of measurement points across a facility, creating a detailed digital model of conveyors, chutes, structural steel and equipment installations.
Coal handling plant conveyors and transfer stations
Ship loader infrastructure at export terminals
Port stockpile systems and stacker reclaimers
Manufacturing production lines
Industrial processing plants
These digital datasets can then be converted into engineering-grade CAD models, enabling detailed design work to be completed before the shutdown occurs.
This approach significantly reduces installation risk and allows fabrication work to begin before the plant outage.
For a deeper explanation of shutdown preparation workflows see:
Coal plants contain some of the most complex materials handling systems in heavy industry. Conveyors move thousands of tonnes of material per hour through crushers, screens, transfer chutes, and stockpiles.
Common shutdown engineering tasks include:
Transfer chute redesign
Conveyor upgrades
Structural steel modifications
Dust control improvements
Maintenance access upgrades
These areas are typically congested with equipment and structural supports. Engineering teams must therefore confirm clearances and installation access before shutdown work begins.
Laser scanning and digital modelling allow engineers to identify clashes and installation constraints early in the design phase.
Learn more about mechanical engineering support for these systems:
Transfer chutes are often a major focus of shutdown engineering work. Poorly designed chutes can cause:
Conveyor belt wear
Blockages and carryback
Excessive dust generation
Reduced throughput
Because chutes are located at conveyor transfer points, modifications must often be installed during shutdown windows when conveyors are offline.
Engineering models developed from site scans allow designers to develop improved chute geometries that optimise material flow and reduce maintenance issues.
Although coal handling plants are a major focus, the same engineering preparation methods apply across many industries.
Shutdown engineering scanning is increasingly used in:
Mining processing plants
Bulk material handling facilities
Manufacturing plants
Power stations
Port infrastructure
Industrial processing facilities
By developing accurate digital models before shutdowns occur, engineering teams can plan work packages, confirm installation sequences, and minimise delays during the outage period.
Proper shutdown planning improves safety, reduces downtime, and helps ensure maintenance projects are completed efficiently.
The Future of Shutdown Engineering
As mining and industrial infrastructure becomes more complex, shutdown preparation is increasingly relying on digital engineering workflows.
Technologies such as:
3D laser scanning
point cloud modelling
digital twins
engineering simulation
are transforming the way shutdowns are planned and executed.
For operators of coal plants, ports, and manufacturing facilities, investing in accurate engineering data before a shutdown begins is one of the most effective ways to reduce project risk and improve plant reliability.
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behaviour or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional
Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
