Industrial Plant 3D Laser Scanning Across Western Sydney

Industrial plant at night with engineer using a FARO 3D laser scanner and tablet, capturing a digital point cloud of pipework in Western Sydney.

Parramatta | Penrith | Liverpool | Greater Western Sydney

At Hamilton By Design, we provide engineering-grade 3D laser scanning services across Western Sydney’s key industrial regions. Our focus is not just on capturing data, but on delivering accurate, usable models that support real-world engineering outcomes.

Western Sydney continues to grow as one of Australia’s most important industrial corridors. From high-rise developments in Parramatta to manufacturing hubs in Penrith and processing facilities in Liverpool, each region presents unique challenges that require a tailored approach to reality capture and engineering design.

Our services combine LiDAR scanning, point cloud processing, and mechanical engineering expertise to support industrial plants, infrastructure upgrades, and brownfield modifications. Learn more about our core service here:
👉 https://www.hamiltonbydesign.com.au/3d-laser-scanning-for-industrial-plants-in-sydney/

Parramatta – Commercial Infrastructure & Building Services

Parramatta has evolved into Sydney’s second CBD, with a strong concentration of commercial buildings, government facilities, and infrastructure projects. Industrial plant work in this region is typically focused on building services, plant rooms, and refurbishment projects rather than heavy industry.

We support Parramatta-based projects involving:

Commercial towers and mixed-use developments
Government and institutional facilities
Building services and mechanical plant rooms
Construction and refurbishment works

3D scanning in Parramatta is commonly used to capture existing conditions for upgrades, ensuring accurate integration of new systems within constrained environments. Our scan-to-BIM and point cloud modelling workflows allow engineers and contractors to reduce risk, avoid clashes, and improve coordination across disciplines.

3D CAD Modelling Australia service banner for Hamilton By Design

Penrith – Manufacturing & Industrial Operations

Penrith represents one of Western Sydney’s key manufacturing and logistics corridors. The region is home to a wide range of industrial facilities, including production plants, warehouses, and distribution centres.

We work with Penrith-based industries such as:

Manufacturing facilities and production lines
Warehousing and logistics operations
Packaging and processing plants
Light industrial workshops

In these environments, 3D laser scanning is essential for capturing existing layouts before equipment upgrades or expansions. Whether integrating new machinery or optimising production flow, accurate point cloud data ensures that modifications are designed to fit first time.

Our point cloud to CAD services convert scan data into engineering-ready models, allowing for detailed design, fabrication, and installation planning.
👉 https://www.hamiltonbydesign.com.au/point-cloud-to-cad

Liverpool – Processing Plants & Mixed Industrial Facilities

Liverpool supports a diverse mix of industries, including food processing, light manufacturing, healthcare infrastructure, and commercial facilities. This creates a demand for flexible engineering solutions that can adapt to different operational environments.

Typical industries we support in Liverpool include:

Food and beverage processing plants
Mechanical and fabrication workshops
Healthcare and large-scale facilities
Mixed-use industrial sites

3D scanning in Liverpool is often used to model complex pipework systems, process equipment, and building layouts. These models form the basis for plant upgrades, maintenance planning, and engineering design.

By combining scanning with mechanical engineering expertise, we ensure that all outputs are not only accurate but also aligned with Australian Standards and operational requirements.

Western Sydney – Heavy Industry & Infrastructure Growth

Across Greater Western Sydney, large-scale infrastructure and industrial developments continue to expand. This includes utilities, transport hubs, bulk handling facilities, and heavy industrial operations.

We support projects across Western Sydney involving:

Industrial plants and processing facilities
Infrastructure and utilities
Transport and logistics hubs
Bulk materials handling systems

In these environments, 3D laser scanning plays a critical role in supporting shutdown planning, structural upgrades, and mechanical modifications. High-accuracy data capture allows for better decision-making, reduced downtime, and improved project outcomes.

From Scanning to Engineering Outcomes

What sets Hamilton By Design apart is our ability to take projects beyond scanning.

Many providers deliver point clouds or visual models. We deliver:

Engineering-grade CAD models
Fabrication-ready drawings
Mechanical design solutions
Fit-for-purpose plant upgrades

Our workflow is simple and effective:

Scan → Model → Design → Deliver

This integrated approach ensures that clients receive not just data, but a complete engineering solution.

Supporting Industry Across Western Sydney

Across Parramatta, Penrith, Liverpool, and Greater Western Sydney, we support a wide range of industries including:

Commercial Infrastructure
Manufacturing
Processing Plants
Heavy Industry

Our services are designed to reduce risk, improve accuracy, and deliver reliable engineering outcomes for industrial projects of all sizes.

Get Started

If you are planning an industrial project in Western Sydney and need accurate site data, modelling, or engineering support, we can help.

Explore our services or get in touch:

Name

First

Last

Company / Organisation / Private Project

Your Role / Owner

you consultation Message

Would you like us to arrange a phone consultation for you?

Phone

Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

Comment or Message

Related Sydney Services

Hamilton By Design provides engineering-led 3D scanning, LiDAR scanning, mechanical engineering and digital engineering services throughout Sydney and Greater Sydney.

Explore our related Sydney services:

3D Scanning Sydney – Engineering-grade terrestrial laser scanning, as-built surveys and point cloud capture for industrial, infrastructure and commercial projects.
Reality Capture Sydney – High-accuracy reality capture, digital twins, asset documentation and engineering-grade site verification.
Scan to CAD Sydney – Convert point cloud data into AutoCAD, SolidWorks, Inventor and other engineering-ready CAD deliverables.
Point Cloud Modelling Sydney – Engineering-grade point cloud processing, clash detection, as-built verification and 3D modelling.
Mechanical Engineering Sydney – Mechanical design, plant upgrades, materials handling systems, conveyors, chutes, platforms and engineering support.
Structural Drafting Sydney – Structural steel drafting, fabrication drawings, GA drawings, workshop detailing and as-built documentation.

Hamilton By Design supports projects throughout Sydney CBD, Parramatta, Liverpool, Penrith, Blacktown, Chatswood, Alexandria, Mascot, Newcastle and the Central Coast.

Mechanical Engineering Consulting

3D Laser Scanning

3D Scanning Sydney | Engineering-Led LiDAR, CAD & Mechanical Design Services

SolidWorks – Sydney

Mechanical Engineering Sydney: Why Local Expertise Beats Offshore Design

Scan to Design: The Digital Engineering Workflow – Sydney

3D Scanning Blue Mountains – Engineering-Grade LiDAR by Hamilton By Design

3D LiDAR Scanning for Industrial Facilities in Western Sydney

Blue banner graphic displaying the text "Point Cloud to CAD - Australia" in large white lettering, representing point cloud processing, scan-to-CAD conversion and digital engineering services across Australia.

Blue banner graphic displaying the text "Scan to CAD Sydney" in large white lettering, representing engineering-led point cloud to CAD conversion, LiDAR scanning and digital engineering services in Sydney.

Blue banner graphic displaying the text "Reality Capture Sydney - CBD" in large white lettering, representing engineering-led reality capture, LiDAR scanning and digital engineering services within Sydney CBD commercial buildings and infrastructure.

Mechanical Engineering Services – Sydney

23 April 202625 May 2026

Terrestrial LiDAR Scanner | Engineering-Grade 3D Laser Scanning

Terrestrial LiDAR scanner capturing industrial plant

What is a Terrestrial LiDAR Scanner?

A terrestrial LiDAR scanner is a ground-based 3D laser scanning system used to capture highly accurate measurements of real-world environments and convert them into detailed digital models known as point clouds.

At Hamilton By Design, we use engineering-grade terrestrial LiDAR scanning to support design, drafting, and construction across industrial, mining, and infrastructure projects.

3D LiDAR scanning and 3D modelling service button — laser scanner capturing a point cloud for engineering and CAD modelling

How a Terrestrial LiDAR Scanner Works

A terrestrial LiDAR scanner measures distance using laser technology:

A laser beam is emitted from the scanner
The beam reflects off surfaces such as steel, concrete, or pipework
The scanner records the return signal
Distance is calculated using time-of-flight or phase shift
Millions of measurements are captured per second

The result is a dense and accurate 3D point cloud representing the scanned environment.

What is a Point Cloud?

A point cloud is a digital dataset made up of millions (or billions) of points.

Each point contains:

X, Y, Z coordinates
Spatial position in 3D space
Optional colour information (RGB)

This creates a true-to-life digital representation of physical assets, forming the foundation for CAD modelling and engineering design.

Why Use a Terrestrial LiDAR Scanner?

Accuracy

Terrestrial LiDAR scanners provide millimetre-level accuracy, making them suitable for engineering and fabrication.

Speed

Large and complex environments can be captured quickly compared to traditional survey methods.

Safety

Data can be captured without direct access to hazardous or difficult-to-reach areas.

Reduced Rework

Designs are based on real-world data, reducing clashes and site modifications.

Engineering Applications

Terrestrial LiDAR scanning is widely used across:

Industrial plant upgrades
Mining and processing facilities
Structural and mechanical design
Brownfield engineering projects
As-built verification
Reverse engineering

For projects requiring integration with your team, this capability can also be delivered through our engineering secondment services:
https://www.hamiltonbydesign.com.au/home/secondment-services/

Engineering-Led LiDAR Scanning

Not all LiDAR scanning is equal.

At Hamilton By Design, scanning is performed with an engineering-first approach, ensuring the data is suitable for downstream use in CAD and design.

Key considerations include:

Line-of-sight limitations
Scan density and coverage
Registration accuracy
Data structure and usability

This ensures the output is not just a visual model, but a usable engineering dataset.

From Scan to CAD

Our workflow converts LiDAR data into practical deliverables:

Scan → Register → Model → Detail → Deliver

This includes:

Point cloud registration (.E57, .RCP, .LAS)
3D CAD modelling (SolidWorks and other platforms)
2D drawings and fabrication-ready documentation

Terrestrial vs Other Scanning Methods

Terrestrial LiDAR: High accuracy, long range, ideal for engineering
Handheld scanners: Faster but lower accuracy, suited to small objects
Photogrammetry: Visual models, not typically engineering-grade

For industrial and brownfield environments, terrestrial LiDAR remains the preferred method.

Terrestrial LiDAR scanner capturing industrial plant with Sydney Harbour Bridge in background

In-House & Secondment Delivery

We provide flexible delivery models to suit your project:

In-house scanning and modelling (fully managed)
Secondment services (embedded within your team)

Learn more about our secondment capability:
https://www.hamiltonbydesign.com.au/home/secondment-services/

Why Choose Hamilton By Design

Engineering-led LiDAR scanning
Integration with CAD modelling and drafting
Strong experience in industrial and mining environments
Brownfield project expertise
Practical, buildable outputs

Get Started with Terrestrial LiDAR Scanning

If you require accurate, engineering-grade 3D data for your project, a terrestrial LiDAR scanner provides the foundation for reliable design and execution.

Hamilton By Design delivers scanning, modelling, and engineering support across Sydney and Australia.

3D Laser Scanning

Point Cloud Laser Scanning

Talk to Us – Contact Us

Name

First

Last

Company / Organisation / Private Project

Your Role / Owner

Would you like us to arrange a phone consultation for you?

Phone

Email consultation you

Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

Comment or Message

Scan to CAD with AI | Engineering-Grade LiDAR to CAD Modelling Australia

21 April 202631 May 2026

Wearable 3D Scanners vs Engineering-Grade LiDAR

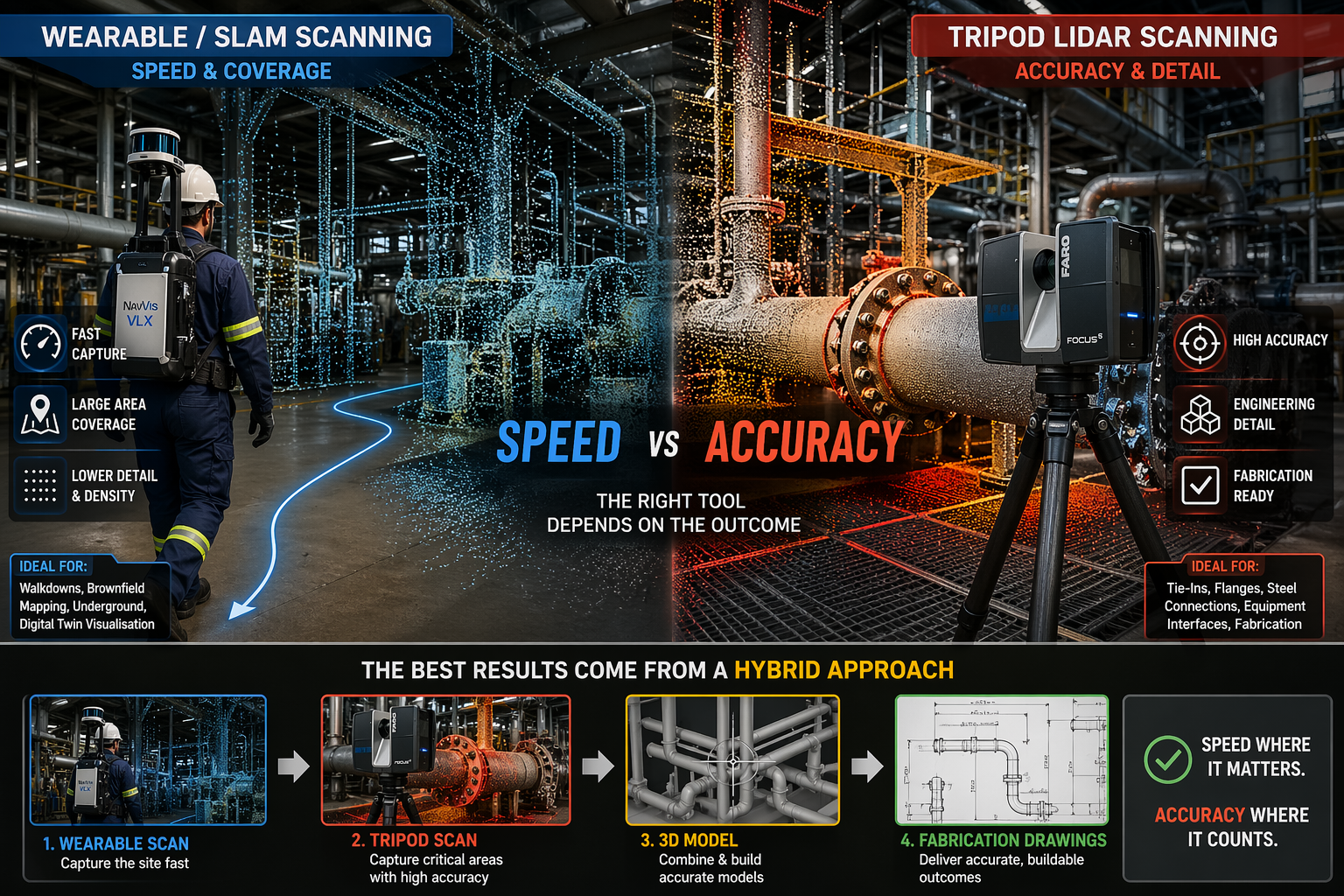

Wearable SLAM lidar scanner compared with tripod laser scanner in an industrial plant showing speed versus accuracy in point cloud data

Wearable 3D Scanners vs LiDAR | Engineering Accuracy Explained

Why Speed Doesn’t Always Mean Accuracy in Industrial Scanning

Blue 3D LiDAR scanner icon on a tripod with scanning waves

Wearable 3D scanning systems — often referred to as backpack or body-mounted LiDAR scanners — are becoming increasingly common across mining, construction, and industrial environments.

These systems allow an operator to walk through a site and capture data in real time, significantly reducing time spent in the field.

However, while speed has improved, an important question remains:

Are wearable scanners suitable for engineering and fabrication work?

At Hamilton By Design, we take an engineering-led approach to scanning. The answer is not as simple as many vendors suggest.

What Are Wearable 3D Scanners?

Wearable scanners, also known as SLAM LiDAR systems, are designed to be worn while walking through a site.

They typically use a combination of:

LiDAR sensors
Cameras
Inertial Measurement Units (IMU)
SLAM (Simultaneous Localisation and Mapping) algorithms

This allows the system to generate a continuous 3D point cloud without the need for tripod setups or survey targets.

In simple terms, the operator becomes the scanner.

The Key Advantage: Speed

The main advantage of wearable systems is speed.

They allow for:

Rapid site capture
Minimal setup time
Scanning of complex or confined environments
Efficient coverage of large areas

For walkdowns, site familiarisation, and early-stage layouts, wearable scanning is highly effective.

The Trade-Off: Accuracy and Detail

While wearable systems offer speed, they come with trade-offs.

Wearable SLAM scanners typically produce:

Lower point density
Reduced edge definition
Positional drift over longer distances

In contrast, traditional terrestrial LiDAR scanners provide:

High-density point clouds
Sharp and well-defined geometry
Millimetre-level accuracy
Repeatable and verifiable results

Why This Matters for Engineering

In industrial environments, scan data is not just for visualisation. It is used for:

Design modelling
Clash detection
Fabrication drawings
Installation planning

If the data lacks accuracy, it can lead to:

Misaligned pipework
Incorrect steel fabrication
Costly rework during shutdowns

A model that looks correct is not the same as a model that is correct.

Where Wearable Scanning Works Best

Wearable systems are well suited to:

Large-scale site capture
Underground environments
Brownfield walkdowns
Asset mapping
Digital twin visualisation

They provide excellent coverage and speed, but are not always suitable for detailed engineering work.

Where Engineering-Grade LiDAR Is Essential

Tripod-based LiDAR scanning is critical for:

Tie-in points
Flanges and pipe interfaces
Structural steel connections
Equipment interfaces
Fabrication-ready modelling

These are areas where millimetre-level accuracy is required.

The Reality: A Hybrid Approach

The most effective approach is not choosing one system over the other, but combining both.

A typical workflow includes:

Wearable scanning to capture the full site quickly
Tripod LiDAR scanning to capture critical areas with high accuracy

This provides both speed and precision.

Engineering-Led Scanning vs Fast Scanning

There is a common misconception that faster scanning leads to better outcomes.

In reality:

Fast data is only useful if it is accurate
Point clouds must support engineering decisions
Accuracy must align with project risk

At Hamilton By Design, the focus is on delivering:

Engineering-grade outputs
Scan-to-model workflows
Fabrication-ready data

Our clients

Talk to us – Contact Us

Name

First

Last

Company / Organisation / Private Project

Your Role / Owner

phone Phone Organisation

Would you like us to arrange a phone consultation for you?

Phone

Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

Comment or Message

3D Scanning Engineering in Geraldton

3D LiDAR Scanning & Digital QA Verification | Hamilton By Design

Inspired By Jim

Mechanical Engineering Consulting

3D Laser Scanning

3D Scanning Company

18 April 202625 May 2026

Laser Scanning for Engineering

Why LiDAR Delivers Real Engineering Outcomes

In modern engineering, accuracy is everything. Whether you are working in mining, manufacturing, infrastructure, or plant design, the difference between success and costly rework often comes down to how well you understand what has actually been built.

This is where laser scanning for engineering has become a critical tool.

While many providers offer “3D scanning,” not all data is created equal. There is a significant difference between engineering-grade LiDAR point cloud data and basic STL mesh outputs. Understanding that difference can determine whether your project moves forward efficiently—or gets stuck in rework, assumptions, and redesign.

What is Laser Scanning for Engineering?

Laser scanning for engineering uses LiDAR (Light Detection and Ranging) technology to capture millions of precise measurements of a physical environment. The result is a high-density point cloud—a true digital representation of reality.

Unlike traditional measurement methods, LiDAR captures:

Complex geometry
Structural relationships
Equipment positioning
Real-world deviations from design

This data becomes the foundation for:

CAD modelling (SolidWorks, AutoCAD, Revit)
Engineering drawings
Clash detection
Retrofit and upgrade design

In short, it bridges the gap between design intent and as-built reality.

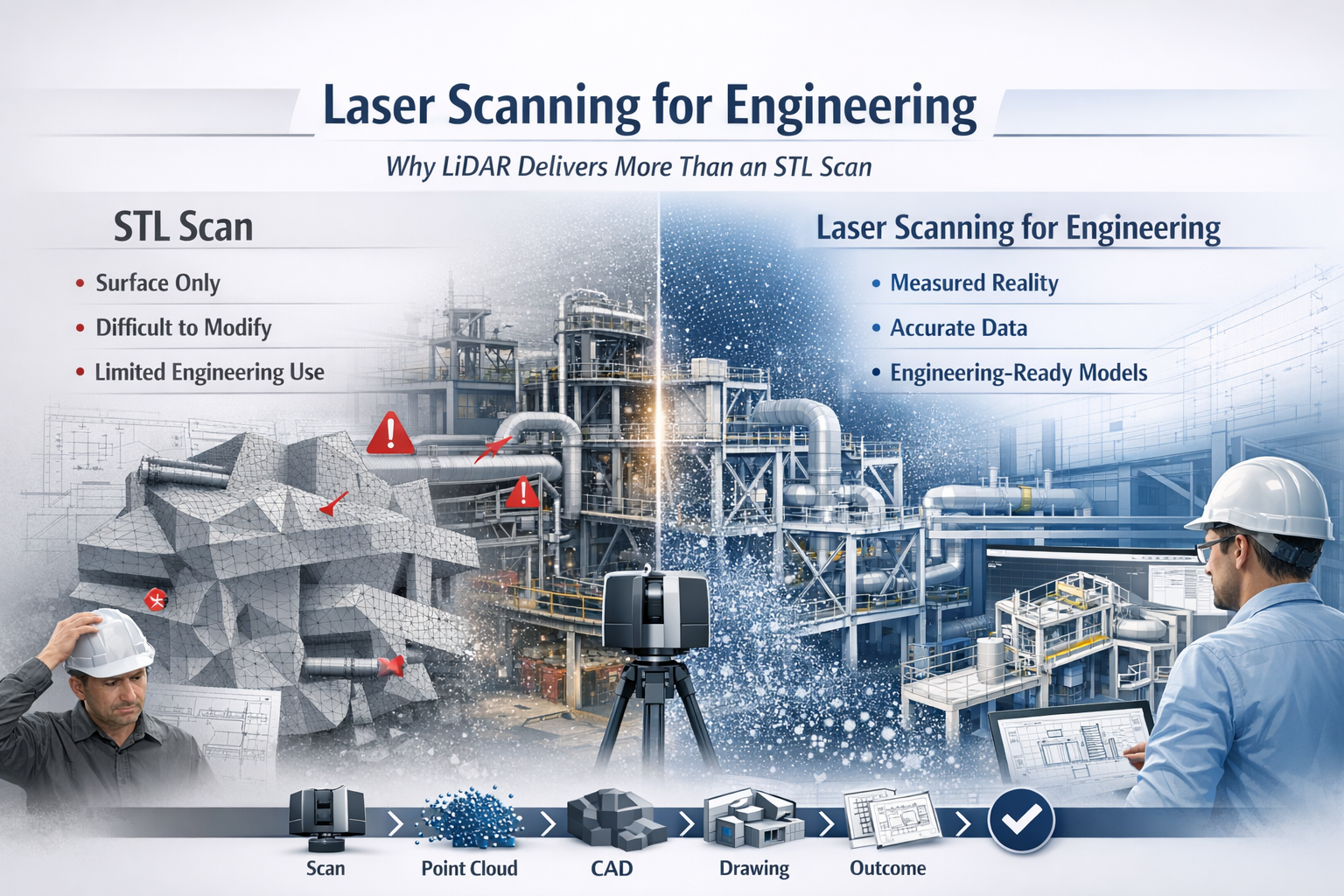

The Problem with STL-Based Scanning

Many scanning providers deliver outputs as STL, OBJ, or mesh files. While these formats are useful for visualisation or 3D printing, they fall short in engineering applications.

Key limitations of STL scans:

No intelligence – Meshes are just surfaces, not structured geometry
Difficult to modify – Not suitable for parametric design workflows
Poor for engineering drawings – Cannot easily generate sections, tolerances, or fabrication details
Heavy and inefficient – Large file sizes with limited usability
No clear chain of accuracy – Hard to verify measurement reliability

In practical terms, an STL file often becomes a dead-end deliverable—you can look at it, but you can’t engineer from it effectively.

Why LiDAR Point Clouds Are Built for Engineering

LiDAR-based laser scanning for engineering produces structured, measurable, and verifiable data that integrates directly into engineering workflows.

Key advantages:

1. True-to-Reality Accuracy

Point clouds capture millions of measured points, providing a high-confidence representation of the real world.

2. Direct CAD Integration

Data can be converted into:

Parametric 3D models
Fabrication-ready drawings
Plant layouts and assemblies

3. Supports Engineering Decisions

Engineers can:

Measure directly from the dataset
Validate clearances and tolerances
Design with confidence

4. Enables Retrofit and Brownfield Design

In existing plants, nothing is ever exactly “as drawn.” LiDAR ensures your design fits what is actually there, not what was intended years ago.

5. Reduces Risk and Rework

Accurate input data leads to:

Fewer site revisits
Reduced fabrication errors
Lower project costs

6. Maintains Chain of Custody

Engineering-grade scanning supports data governance, traceability, and verification—critical in legal, compliance, and high-risk environments.

Engineering vs Visualisation: A Critical Distinction

A key misunderstanding in the industry is assuming all 3D scanning is equal.

STL / Mesh Scanning → Visualisation Output
LiDAR Point Cloud → Engineering Input

If your goal is:

3D printing → STL may be enough
Engineering design, fabrication, or upgrades → LiDAR is essential

Real-World Application: Engineering in Practice

Across mining, manufacturing, and infrastructure, laser scanning for engineering is used to:

Capture conveyor systems before modification
Model structural steel for upgrades
Verify equipment installation
Design pipework and mechanical systems
Plan shutdown works with precision

Instead of guessing dimensions or relying on outdated drawings, engineers work from measured reality.

The Workflow That Delivers Results

A proper engineering workflow looks like this:

Scan → Register → Model → Detail → Deliver

Not:

Scan → Export STL → End

That difference defines whether you receive a usable engineering deliverable or just a digital artifact.

Laser scanning for engineering is not just about capturing data—it’s about enabling better engineering outcomes.

LiDAR-based point cloud data provides:

Accuracy
Usability
Engineering value

In contrast, STL-based scanning often limits what you can achieve.

If your project requires real design, real drawings, and real decisions, then the choice is clear:

Use laser scanning for engineering—not just scanning for appearance.

Mechanical Engineering Consulting

3D Laser Scanning

Our clients

Contact Us

Name

First

Last

Company / Organisation / Private Project

for Comment Private

Your Role / Owner

Would you like us to arrange a phone consultation for you?

Phone

Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

Comment or Message

Scan to CAD with AI | Engineering-Grade LiDAR to CAD Modelling Australia

Mechanical Engineering – The Mining Industry

17 March 20264 June 2026

Industrial 3D Scanning Sydney | Mining & Plant Scanning

Sydney industrial sites often involve tight shutdown windows, congested plant areas, ageing infrastructure and limited tolerance for error. Our industrial 3D scanning Sydney service helps project teams capture accurate site conditions before design, fabrication and installation begin.

At Hamilton By Design Co., we provide 3D scanning services in Sydney for mining infrastructure, conveyors, transfer chutes, processing plants, workshops and heavy industrial assets. By converting existing conditions into reliable point cloud data, we help reduce rework, improve fit-up accuracy and support better engineering decisions.

Learn more about our core Sydney scanning capability here:

Engineering-grade scanning delivers measurable geometry — not just visuals — enabling confident decision-making across design, fabrication and construction workflows.

Reality Capture Sydney – CBD

Why Industrial 3D Scanning Matters

Industrial facilities evolve over time. Steelwork is modified, equipment is relocated, and plant layouts drift away from original drawings. This creates significant risk when new components must fit within existing infrastructure.

Our scanning process captures real-world site geometry so engineers and project teams can work from current conditions.

This is especially valuable where:

shutdown durations are limited
access is restricted
plant environments are congested
existing drawings are outdated or unreliable
fabrication accuracy is critical

For a broader overview of how this applies across Sydney projects:

3D Scanning Sydney – Engineering-Grade Reality Capture for Accurate Design & Fabrication

Industrial 3D Scanning Services in Sydney

We deliver industrial 3D laser scanning in Sydney for:

conveyors and conveyor galleries
transfer chutes and discharge points
bins, hoppers and ore handling systems
processing plants and workshops
structural steel and support frames
pipework and plant interfaces
shutdown capture and upgrade areas

These services support engineering workflows where accurate site data feeds directly into CAD modelling, design verification and fabrication planning.

Typical Applications

Conveyor and Chute Upgrades

3D scanning captures the true geometry of existing conveyors and chutes, allowing new designs to fit correctly within tight plant constraints.

Shutdown Planning

Scan data allows detailed engineering work to continue after limited shutdown access windows — reducing risk and repeat site visits.

Brownfield Plant Modifications

For retrofit projects, scanning provides a reliable base for integrating new structures, mechanical systems and access platforms.

👉 See how scanning supports full engineering workflows:

3D Scanning Sydney – Engineering-Grade Reality Capture for Accurate Design & Fabrication

Benefits of Industrial 3D Scanning

Using 3D scanning services in Sydney provides:

improved dimensional accuracy
reduced reliance on manual measurement
fewer design assumptions
better fit between new and existing assets
earlier clash detection
reduced fabrication and installation risk
stronger shutdown planning outcomes

Accurate scan data forms a reliable digital record of site conditions, supporting coordination and verification across projects.

From Site Capture to Engineering Outcomes

Our workflow moves beyond scanning into engineering use:

site capture using LiDAR scanning
registered 3D point cloud generation
CAD modelling and layout development
design validation and clash detection
fabrication-ready engineering outputs

This aligns with a full scan → model → engineer → build workflow used across Sydney projects.

Explore the full workflow here:

3D LiDAR Scanning & Digital QA Verification | Hamilton By Design

Mining and Heavy Industry Focus

This page is specifically positioned for mining, bulk materials handling and heavy industrial applications in Sydney.

Typical systems include:

conveyor systems
transfer chutes
processing infrastructure
maintenance shutdown zones
structural interfaces for upgrades

Hamilton By Design combines engineering expertise with LiDAR scanning and 3D modelling to support plant design, retrofits and digital engineering workflows.

Supporting Shutdowns and Plant Upgrades

Shutdown work carries high risk and tight time constraints. Accurate as-built data reduces uncertainty before fabrication and installation.

Our industrial 3D scanning Sydney service helps teams:

capture plant conditions before shutdown
validate upgrade space and constraints
reduce rework during installation
support fabrication-ready design

For full Sydney coverage and workflows:

3D Laser Scanning

Why Work With Hamilton By Design Co.

Hamilton By Design delivers engineering-led 3D scanning, not just data capture.

This means:

scan accuracy is defined by engineering requirements
outputs are suitable for design and construction
data integrates directly into CAD and engineering workflows
projects are supported from capture through to design

Our services are designed for real-world outcomes — helping projects fit, function and perform as intended.

Call to Action

If you need industrial 3D scanning in Sydney for conveyors, chutes, plant upgrades or shutdown planning, Hamilton By Design Co. can help.

We deliver accurate, engineering-ready site data so your team can reduce risk, improve accuracy and move forward with confidence.

Start your project here:

3D Scanning Sydney CBD

FAQ Section

What is industrial 3D scanning?

Industrial 3D scanning uses laser scanners to capture accurate measurements of plant, structures and equipment, creating a point cloud for engineering use.

Can you scan conveyors and transfer chutes?

Yes — conveyors, chutes and bulk materials handling systems are a core application.

Is this useful for shutdowns?

Yes — scanning allows capture during shutdown and continued engineering work afterwards.

Can the data be used for CAD?

Yes — scan data supports 2D drawings, 3D models and fabrication workflows.

Related Sydney Services

Hamilton By Design provides engineering-led 3D scanning, LiDAR scanning, mechanical engineering and digital engineering services throughout Sydney and Greater Sydney.

Explore our related Sydney services:

3D Scanning Sydney – Engineering-grade terrestrial laser scanning, as-built surveys and point cloud capture for industrial, infrastructure and commercial projects.
Reality Capture Sydney – High-accuracy reality capture, digital twins, asset documentation and engineering-grade site verification.
Scan to CAD Sydney – Convert point cloud data into AutoCAD, SolidWorks, Inventor and other engineering-ready CAD deliverables.
Point Cloud Modelling Sydney – Engineering-grade point cloud processing, clash detection, as-built verification and 3D modelling.
Mechanical Engineering Sydney – Mechanical design, plant upgrades, materials handling systems, conveyors, chutes, platforms and engineering support.
Structural Drafting Sydney – Structural steel drafting, fabrication drawings, GA drawings, workshop detailing and as-built documentation.

Hamilton By Design supports projects throughout Sydney CBD, Parramatta, Liverpool, Penrith, Blacktown, Chatswood, Alexandria, Mascot, Newcastle and the Central Coast.

Point Cloud to CAD Services Sydney

Reality Capture Sydney – CBD

Name

First

Last

Company / Organisation / Private Project

Your Role / Owner

Would you like us to arrange a phone consultation for you?

Phone

Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

for Private us

Comment or Message

Our clients

Pipework Drafting, Pipework Detailing and 3D Scanning for Industrial Projects

Scan to CAD with AI | Engineering-Grade LiDAR to CAD Modelling Australia

CHPP Engineering title graphic featuring bold white text reading "CHPP Engineering" centred on a blue rounded rectangle background.

Pipework Drafting title graphic featuring bold white text reading "Pipework Drafting" centred on a blue rounded rectangle background.

3D LiDAR Scanning for Engineering Projects title graphic featuring bold white text on a blue rounded rectangle background.

3D Scanning Sydney | Engineering-Led LiDAR, CAD & Mechanical Design Services

SolidWorks – Sydney

Mechanical Engineering Services

Engineering-Grade LiDAR Scanning

17 March 20262 June 2026

Point Cloud to CAD Services Sydney

Point cloud to CAD Sydney showing laser scanning of a house with Sydney Harbour Bridge and Opera House in background

Convert 3D Scans into Accurate Engineering Models

Point cloud to CAD services in Sydney are essential for turning raw scan data into usable engineering deliverables.

At Hamilton By Design, we convert 3D laser scans and LiDAR data into accurate AutoCAD and 3D models, enabling engineering design, plant upgrades, and construction planning.

If you already have scan data — or need scanning completed — we provide a complete workflow from site capture through to fabrication-ready models.

👉 Learn more about our scanning services here:

3D Scanning Sydney CBD

What is Point Cloud to CAD?

Point cloud to CAD is the process of converting laser scan data into structured, accurate engineering drawings and 3D models.

This includes:

2D AutoCAD drawings (plans, sections, elevations)
3D CAD models
BIM-ready models
As-built documentation

The result is a model that engineers, designers and fabricators can use with confidence.

Our Point Cloud to CAD Services in Sydney

We deliver modelling services across a wide range of applications:

Industrial & Plant Modelling

Conveyor systems
Transfer chutes
Pipework and services
Structural steel

Construction & Building Modelling

Existing building layouts
Fit-out documentation
Services coordination

Infrastructure Projects

Bridges and structural elements
Road and rail interfaces
Asset capture and upgrades

Our focus is not just on modelling — but on delivering engineering-ready outputs.

From Scan Data to Engineering Deliverables

Our workflow ensures accuracy at every stage:

Point Cloud Import & Registration
Clean, verified scan data aligned to project coordinates
Model Development
Accurate modelling in AutoCAD or 3D platforms
Detailing & Verification
Ensuring geometry matches real-world conditions
Deliverables Issued
Drawings and models ready for design, fabrication or construction

Why Accurate Modelling Matters

Poor modelling from point cloud data can lead to:

Misalignment during installation
Fabrication errors
Costly rework
Project delays

Our engineering-led approach ensures models are:

Fit-for-purpose
Accurate to required tolerances
Suitable for real-world application

Deliverables We Provide

Depending on your project requirements, we can deliver:

2D AutoCAD drawings
3D CAD models
Structural steel models
Plant layouts and equipment models
As-built documentation
BIM-compatible outputs

We tailor deliverables to suit your engineering and project needs.

Applications Across Sydney Projects

Point cloud to CAD is widely used in:

Industrial plant upgrades
Structural steel design and verification
Construction planning and coordination
Refurbishments and fit-outs
Infrastructure projects

For complex environments, accurate modelling reduces risk and improves project outcomes.

Why Choose Hamilton By Design

We are not just modellers — we are engineers.

✔ Engineering-led modelling approach
✔ Experience in industrial and construction environments
✔ Focus on accuracy and real-world application
✔ Understanding of fabrication and installation requirements

We deliver models that work in the field — not just on screen.

Point Cloud to CAD Sydney — Get Started

If you have scan data and need accurate models — or require a full scan-to-model service — we can help.

👉 Contact Hamilton By Design to discuss your project and modelling requirements.

Or learn more about how we capture data through
Reality Capture Sydney:

Reality Capture Sydney

3D Laser Scanning

Name

First

Last

Company / Organisation / Private Project

Your Role / Owner

Private a /

Would you like us to arrange a phone consultation for you?

Phone

Address

Address Line 1

Address Line 2

City

State / Province / Region

Postal Code

Country

Comment or Message

Our clients

Related Sydney Services

Hamilton By Design provides engineering-led 3D scanning, LiDAR scanning, mechanical engineering and digital engineering services throughout Sydney and Greater Sydney.

Explore our related Sydney services:

3D Scanning Sydney – Engineering-grade terrestrial laser scanning, as-built surveys and point cloud capture for industrial, infrastructure and commercial projects.
Reality Capture Sydney – High-accuracy reality capture, digital twins, asset documentation and engineering-grade site verification.
Scan to CAD Sydney – Convert point cloud data into AutoCAD, SolidWorks, Inventor and other engineering-ready CAD deliverables.
Point Cloud Modelling Sydney – Engineering-grade point cloud processing, clash detection, as-built verification and 3D modelling.
Mechanical Engineering Sydney – Mechanical design, plant upgrades, materials handling systems, conveyors, chutes, platforms and engineering support.
Structural Drafting Sydney – Structural steel drafting, fabrication drawings, GA drawings, workshop detailing and as-built documentation.

Hamilton By Design supports projects throughout Sydney CBD, Parramatta, Liverpool, Penrith, Blacktown, Chatswood, Alexandria, Mascot, Newcastle and the Central Coast.

Scan to CAD with AI | Engineering-Grade LiDAR to CAD Modelling Australia

3D Scanning Sydney | Engineering-Led LiDAR, CAD & Mechanical Design Services

SolidWorks – Sydney
