Engineering-Grade LiDAR Scanning for Accurate Digital Site Capture
Across Sydney and the wider metropolitan region, engineering, construction, and industrial projects increasingly depend on accurate digital representations of existing conditions. In dense urban environments, outdated drawings, undocumented modifications, and complex services layouts make assumptions costly. 3D Point Cloud Scanning in Sydney provides a reliable foundation for design, verification, and construction by capturing reality exactly as it exists.
Hamilton By Design delivers engineering-grade 3D point cloud scanning services, using high-accuracy terrestrial LiDAR to support design, retrofit, construction verification, and asset documentation.
What Is 3D Point Cloud Scanning?
3D point cloud scanning uses LiDAR (Light Detection and Ranging) technology to measure millions of points in three-dimensional space. Each scan captures precise X, Y, and Z coordinates, producing a dense digital representation of physical environments.
The resulting point cloud accurately reflects:
- Geometry
- Spatial relationships
- Clearances and interfaces
- Installed conditions at a specific moment in time
Unlike traditional surveys or manual measurements, point cloud scanning captures complete spatial context, making it particularly valuable in complex or congested environments.
Why 3D Point Cloud Scanning Is Essential in Sydney
Sydney projects face unique challenges:
- High-density commercial buildings
- Congested mechanical and electrical services
- Live, operational sites
- Brownfield and retrofit-driven works
- Limited tolerance for rework or shutdowns
In these conditions, incomplete information leads directly to clashes, redesign, and delays. 3D point cloud scanning reduces risk by providing a single source of spatial truth that engineers, designers, and builders can rely on.
Engineering-Led Scanning at Hamilton By Design
At Hamilton By Design, point cloud scanning is delivered as an engineering service, not a commodity scan.

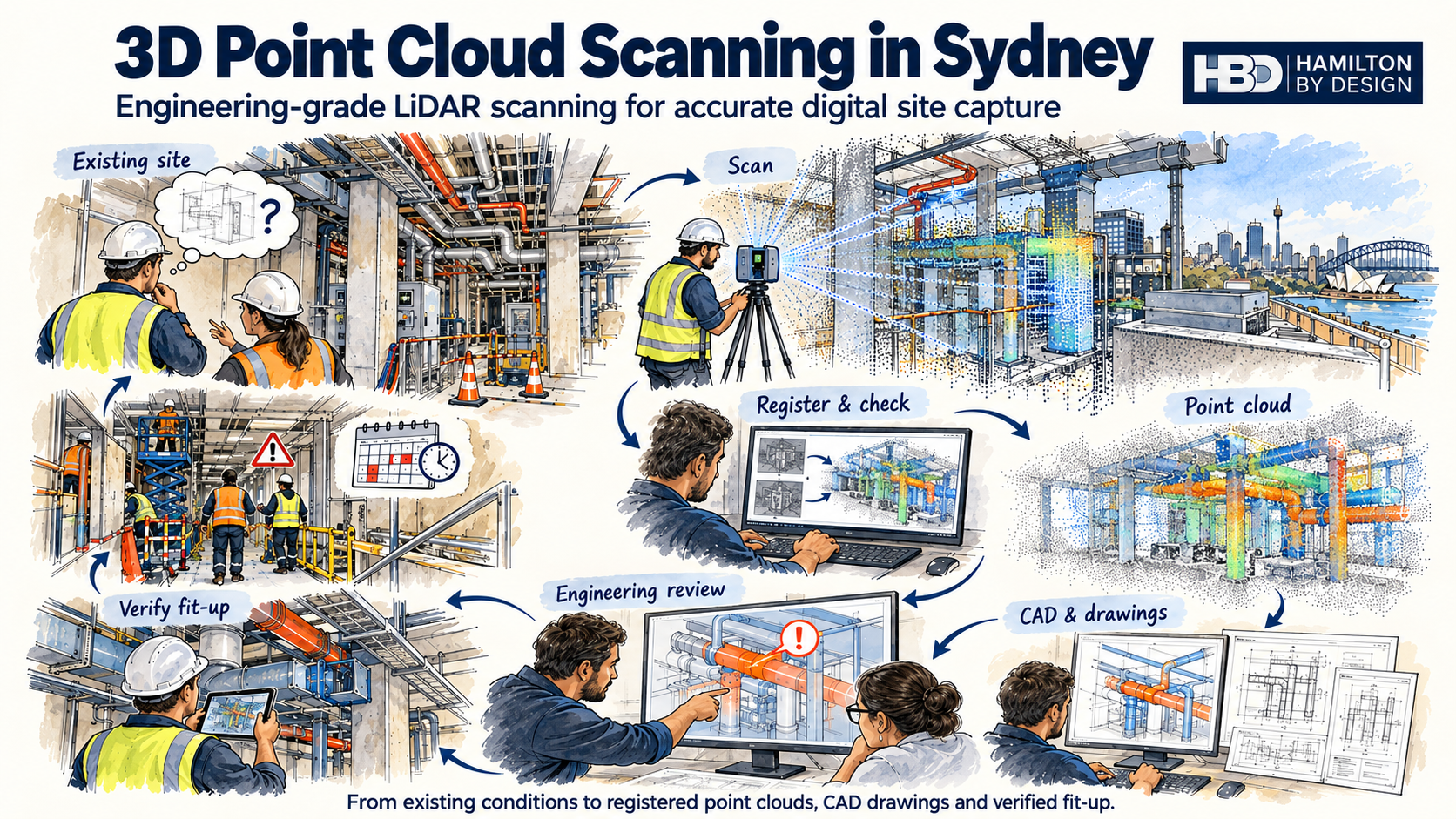

Our typical workflow includes:
- Engineer-led scan planning aligned to project objectives
- High-accuracy terrestrial LiDAR scanning suited to confined and complex sites
- Controlled registration and validation of scan data
- Engineering interpretation of point cloud information
- Optional conversion into CAD models and drawings
This ensures the scan data is not just accurate, but fit for purpose for downstream engineering use.
Common Applications of 3D Point Cloud Scanning in Sydney
As-Built Site Capture
Point cloud scanning is widely used to capture:
- Commercial building interiors and exteriors
- Structural elements, slabs, columns, and penetrations
- Plant rooms, basements, and rooftops
These scans form the basis for accurate as-built documentation and refurbishment planning.
Mechanical and Services Environments
In congested ceiling spaces and plant areas, point cloud scanning accurately captures:
- HVAC ductwork
- Pipework and valves
- Cable trays and electrical services
- Fire and hydraulic systems
This data supports coordination, retrofit design, and fabrication planning.
Construction Verification and Digital QA
During construction, point cloud scanning is used for:
- Installed versus design verification
- Fit-up and alignment checks
- Quality assurance reporting
- Progress documentation
Each scan provides a defensible digital record of what has been built.
Brownfield and Retrofit Projects
For ageing or undocumented assets, scanning allows engineers to:
- Design upgrades with confidence
- Minimise site rework
- Reduce shutdown and access risks
This is particularly valuable in Sydney CBD projects where access is limited.
From Scan Data to Engineering Outcomes
Point cloud data can be used directly for measurement and verification, or extended into Scan to CAD workflows.
Hamilton By Design can convert scan data into:
- SolidWorks-based mechanical models
- As-built CAD drawings
- Fabrication-ready documentation
- Inputs for FEA and mechanical assessment
By linking scanning directly to engineering and CAD, the data remains consistent and traceable throughout the project lifecycle.
Benefits of 3D Point Cloud Scanning
For Sydney-based projects, the benefits are clear:
- Reduced design uncertainty
- Improved coordination across disciplines
- Early identification of clashes and fit-up issues
- Fewer site variations and rework
- Strong digital records for handover and asset management
Working from accurate scan data allows problems to be resolved digitally, before they become physical and expensive.
Why Choose Hamilton By Design
Hamilton By Design offers a single-source digital engineering workflow, combining:
- High-accuracy 3D point cloud scanning
- Mechanical engineering expertise
- CAD modelling and verification
- Fabrication-ready documentation
- Optional FEA and assessment services
This integrated approach ensures scan data is not just collected, but used effectively to support real engineering decisions.
3D Point Cloud Scanning in Sydney
Whether supporting a CBD refurbishment, a construction verification program, or a complex mechanical upgrade, 3D Point Cloud Scanning in Sydney provides the foundation for confident, data-driven engineering.
Hamilton By Design delivers scanning services built around accuracy, engineering intent, and practical outcomes — helping projects move forward with clarity and reduced risk.
