3D Laser scanning is the art form of a controlling a visible deflection of laser beam that captures a set of points from a specific datum to derive a virtual reflection of a known space or envelope.

This space or envelope is recorded as a data set of existing geometry. This existing geometry can be converted or imported in a 3-D solid modelling environment where 3-d Solid models can be created in either a top down or bottom modelling environment.

Just as one needs to focus a camera to generate a crisp image point cloud scanning has the same need to focus on the subject along with the datum.

3D CAD Modelling Australia service banner for Hamilton By Design

What Differentiates 3D LiDAR Scanning for Mechanical Engineering Projects?

In mechanical engineering and industrial environments, accurate site data is critical for effective design, maintenance, and upgrades. 3D LiDAR scanning offers a superior method of data collection when compared to both traditional manual measurements and existing as-built drawings.

Compared to As-Built Drawings

As-built drawings are traditionally relied on to understand existing site conditions. However:

They’re often outdated — plants evolve over time, and many changes (especially minor ones) are undocumented.
Prone to inaccuracy — hand-markups and field changes rarely reflect actual conditions.
2D limitations — As-builts typically lack depth or 3D spatial relationships critical in retrofit or modification work.

LiDAR scanning, by contrast, captures a real-time 3D snapshot of the current environment, producing a true digital twin of the site — not just what was designed, but what actually exists.

Compared to Manual Measurement

While traditional measuring tools (tape, laser distance meters, total stations) are useful, they:

Are time-consuming, particularly on complex or congested sites
Require access to all measurement points, which may be difficult or hazardous
Capture limited data, often needing interpretation or manual CAD input

LiDAR scanning collects millions of accurate data points in minutes — safely and efficiently — from a distance.

Key Advantages of 3D LiDAR Scanning

Feature	3D LiDAR Scanning	As-Built Drawings	Manual Measurement
Accuracy	Millimetre-level	Varies (often outdated)	Medium (depends on access)
Data Currency	Real-time, current site	Often outdated	Current, but limited scope
3D Context	Full 3D spatial capture	2D or basic 3D	No 3D unless modeled
Safety	Remote capture possible	N/A	Requires physical access
Time Required	Rapid (minutes to hours)	N/A (pre-existing)	Slow (hours to days)
CAD/BIM Integration	Seamless	Manual redrafting required	Manual input required

Why This Matters in Engineering Projects

Design accuracy: Helps avoid costly mistakes and rework.
Clash detection: Identify interferences before fabrication or installation.
Brownfield integration: Match new designs precisely to existing geometry.
Shutdown efficiency: Reduce site visits and prep time with remote planning.

While as-built drawings and manual measurement have their place, 3D LiDAR scanning represents a leap forward in accuracy, efficiency, and safety. For mechanical engineering projects — especially in mining, power, and processing industries — it provides confidence in the data and clarity in the design process

Where We Provide 3D Laser Scanning

Hamilton By Design provides engineering-grade 3D laser scanning services throughout Australia, supporting projects in Sydney, Newcastle, the Central Coast, Brisbane, Perth, Melbourne, Adelaide, Darwin, Mount Isa and regional industrial centres.

Our terrestrial LiDAR scanning and reality capture services support mining operations, mineral processing facilities, smelters, manufacturing plants, commercial buildings, hospitals, transport infrastructure, water treatment facilities and brownfield industrial sites.

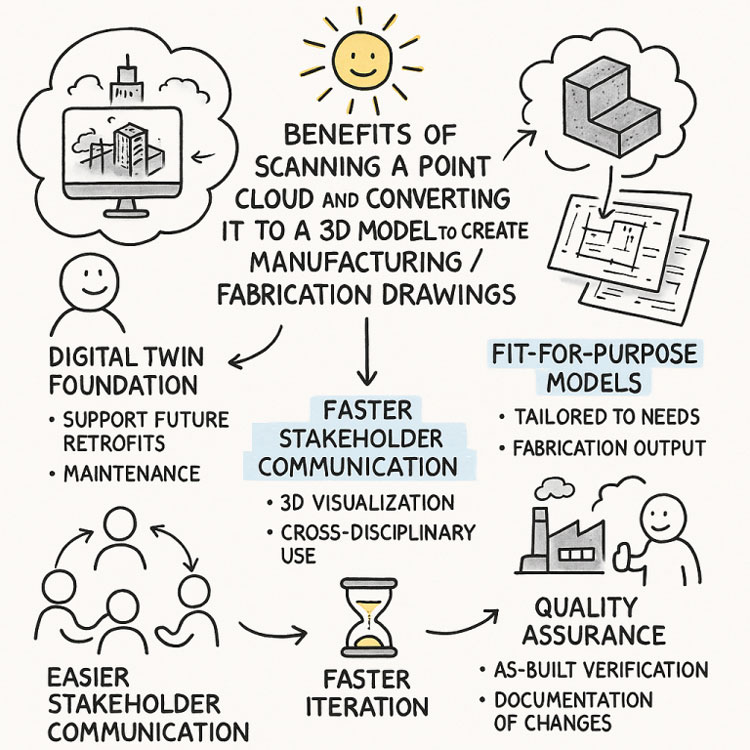

By capturing millions of accurate measurement points, we create detailed point clouds that can be used for Scan to CAD, as-built verification, clash detection, digital engineering, plant upgrades, asset management and engineering design. This approach reduces site visits, improves project accuracy and provides project teams with reliable existing-condition information.

Whether your project involves a single plant room, a large processing facility, an operational mine site or complex building services infrastructure, Hamilton By Design can provide accurate engineering-grade reality capture solutions to support the entire project lifecycle.
