Are We Measuring Wear or Understanding It?

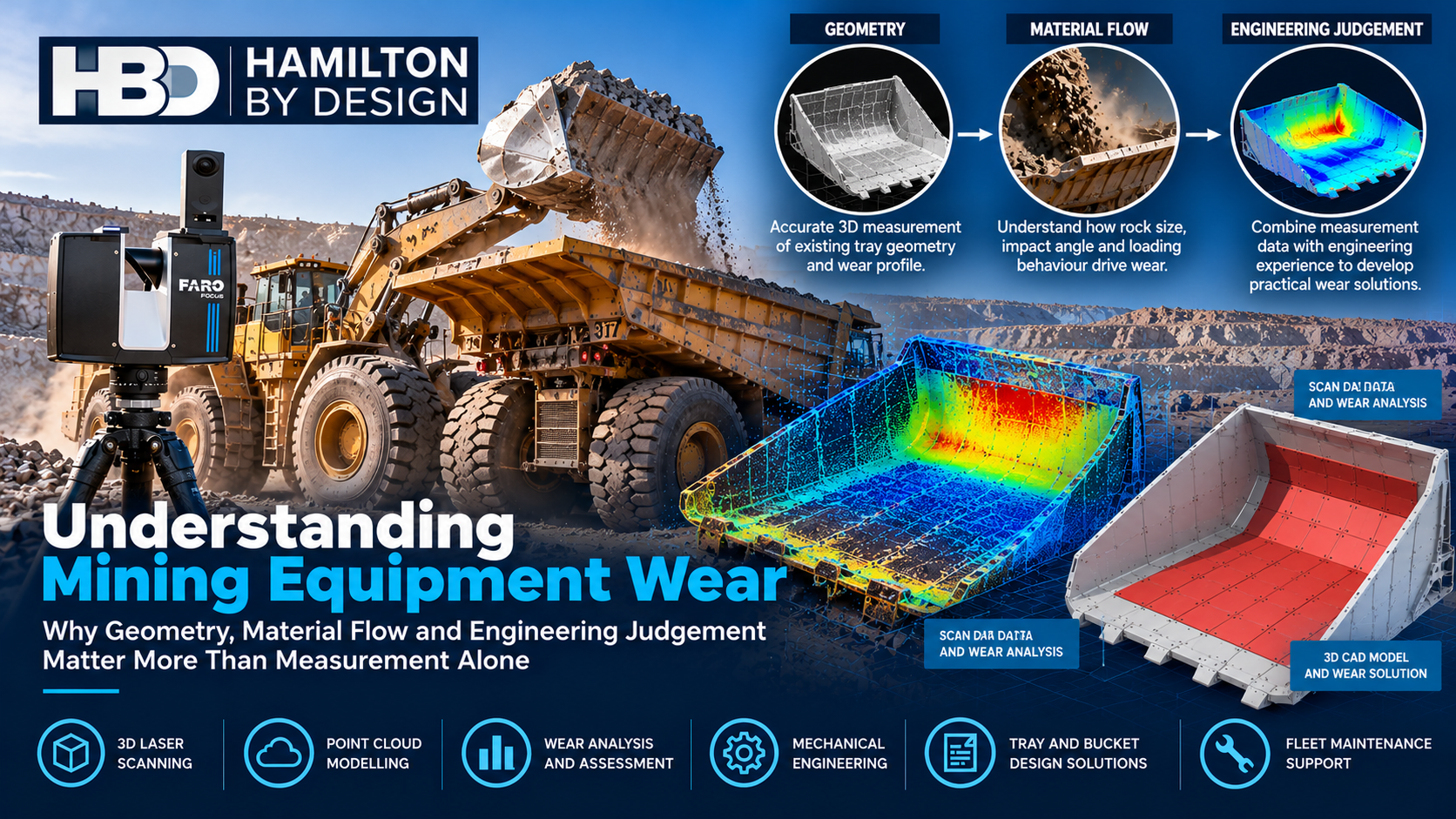

Understanding Mining Equipment Wear – Why Geometry, Material Flow and Engineering Judgement Matter More Than Measurement Alone
Today’s engineers have access to an exceptional range of measurement technologies.
3D LiDAR scanning, ultrasonic thickness testing, laser metrology, photogrammetry, vibration analysis and advanced CAD modelling allow equipment condition to be assessed with considerable detail.
However, at Hamilton By Design, we believe there is an important distinction between measuring wear and understanding why wear occurs.
A surveyor may identify a 15 mm variation in the geometry of a truck tray. A maintenance engineer may identify repeated wear plate replacement. A reliability engineer may establish that equipment service life is declining.
All three observations are valuable, but none necessarily explains why material is contacting a particular surface, why a component is deforming or whether a change in geometry could reduce the problem.
We consider that effective wear assessment requires a combination of accurate measurement, mechanical engineering, material-flow understanding and practical operating experience.
This philosophy also relates to our article on Project Management Challenges, where accurate existing-condition information and well-defined engineering requirements are important considerations.
1. Why Loader Buckets and Haul Truck Trays Experience Different Wear
Although loader buckets and haul truck trays handle similar materials, their operating conditions are fundamentally different.
A loader bucket penetrates and displaces material. Its cutting edge, teeth and protective components experience substantial digging forces, contact pressure, gouging and abrasive sliding.
A haul truck tray receives material, transports it and subsequently discharges it under gravity.
| Wear consideration | Loader bucket | Haul truck tray |
|---|---|---|
| Ground engagement | High during digging | Generally none |
| Abrasive contact | Digging and material movement | Loading and discharge |
| Impact loading | Digging and filling | Material falling into tray |
| Material throughput | Combined production of multiple trucks | Individual truck production |
| Wear protection | Teeth, cutting edges, shrouds and liners | Floor liners, impact protection and wear plates |
| Main design consideration | Digging efficiency and durability | Payload efficiency and structural durability |
Loader buckets commonly incorporate extensive replaceable wear protection because their ground-engaging surfaces experience severe abrasive contact.
However, this does not automatically mean the loader bucket structure will wear out before the truck tray.
2. Operating Cycles – One Loader Servicing Multiple Trucks
A common mistake when comparing wear is to assume that one loader operates with one truck.
In reality, a loader may service several haul trucks.
Consider the following hypothetical mining operation.
| Operating parameter | Assumed value |
|---|---|
| Number of loaders | 1 |
| Number of haul trucks | 5 |
| Truck payload | 120 tonnes |
| Effective bucket payload | 20 tonnes |
| Bucket passes per truck | 6 |
| Complete truck cycle | 30 minutes |
| Operating hours per day | 20 |
| Operating days per year | 300 |
The truck cycle includes loading, hauling, tipping and returning. The example assumes sufficient loading capacity and no significant operational delays.
Calculation 1 – Truck Cycles
Each truck completes:
40 loads/day = (20 × 60) ÷ 30
Across five trucks:
5 × 40 = 200 truckloads/day
Calculation 2 – Daily Material Throughput
200 × 120 = 24,000 tonnes/day
Each individual truck carries:
40 × 120 = 4,800 tonnes/day
The loader therefore handles five times the material throughput of an individual truck tray.
Calculation 3 – Loader Bucket Cycles
Each truck requires six bucket passes.
200 × 6 = 1,200 bucket cycles/day
Each individual truck tray receives:
40 × 6 = 240 bucket discharge events/day
Annual Operating Exposure
| Parameter | Loader bucket | Individual truck tray |
|---|---|---|
| Daily throughput | 24,000 tonnes | 4,800 tonnes |
| Annual throughput | 7,200,000 tonnes | 1,440,000 tonnes |
| Daily material-handling events | 1,200 | 240 |
| Annual material-handling events | 360,000 | 72,000 |
The loader experiences five times the material throughput and material-handling events of an individual truck tray.
However, five times the throughput does not necessarily mean five times the wear.
The actual wear rate depends on material characteristics, contact pressure, particle movement, impact conditions and wear protection.
Operating Capacity and Haul Cycle Assumptions
The production calculations presented are based on a simplified mining fleet consisting of one wheel loader servicing five haul trucks, each with a payload of 120 tonnes.
The assumed 30-minute haul truck cycle includes loading, loaded travel, dumping, empty return travel and associated delays.
Actual cycle times depend on haul distance, road conditions, gradients, travel speeds, loading efficiency and equipment availability.
A shorter haul distance may increase the number of truckloads completed per shift, while a longer haul distance may reduce the frequency of loading and unloading events.
The loader must also have sufficient capacity to service the trucks at the required rate without becoming a production bottleneck.
These operating conditions directly influence the cumulative tonnes handled and the number of loading and unloading cycles experienced by each machine.
Consequently, wear exposure should be assessed using actual operating hours, material throughput, loading cycles and equipment geometry rather than operating time alone.
The calculations are illustrative and are not intended to represent the production performance of a particular mining operation.
3. Particle Size – Is It Controlled by the Production Process?
Particle-size distribution is an important factor in equipment wear.
In conventional open-pit mining, loaders and haul trucks often handle run-of-mine material before primary crushing.
Although drilling and blasting influence fragmentation, particle sizes may vary considerably.
In downstream processing operations, crushing and screening generally provide greater control over particle-size distribution.
| Particle condition | Potential wear mechanism |
|---|---|
| Fine hard particles | Abrasive sliding and scratching |
| Medium angular particles | Cutting and gouging |
| Large rock fragments | Localised impact and deformation |
| Oversize material | High impact forces and potential structural damage |
| Wet or cohesive material | Material buildup and altered flow behaviour |
Material hardness, particle shape, density and moisture content also influence wear.
A large angular rock may create significant localised impact damage, while smaller hard particles can produce substantial abrasive wear under sustained contact pressure.
Therefore, particle size alone cannot predict wear performance.
4. The Cutting Tool Principle – Can Geometry Reduce Wear?
At Hamilton By Design, we consider that wear protection should not simply involve selecting harder steel or installing thicker wear liners.
An important design consideration is whether equipment geometry can reduce unnecessary abrasive contact.
A useful comparison can be made with cutting tools used on milling machines and lathes.
Cutting tools incorporate clearance or relief angles behind the cutting edge.
These angles reduce unnecessary rubbing between the tool and the newly machined surface.
The cutting edge performs the intended work, while the geometry behind it reduces unwanted contact.
We consider that this general design principle has relevance to bulk material handling equipment.
Loader Buckets
A loader bucket must penetrate material during digging.
However, the geometry of the cutting edge, heel, side protection and external wear components influences which surfaces experience abrasive contact.
Appropriate relief geometry and wear protection may reduce unnecessary rubbing and protect the main bucket structure.
Truck Trays, Hoppers and Transfer Chutes
The same broad principle can be considered when designing truck trays, hoppers and transfer chutes.
Where material trajectories can be controlled to reduce unnecessary contact with surrounding surfaces, localised abrasive wear may be reduced.
However, loose rock does not behave like a workpiece on a lathe.
Particles can rotate, rebound, collide and change direction.
Increasing clearance without considering the complete material-flow path may transfer wear to another location or increase impact severity.
The engineering objective should therefore be to establish suitable geometry and material movement rather than simply maximise clearance.
5. Vertical Ore Passes – Understanding Material Movement and Wear
Vertical and steeply inclined ore passes provide an interesting example of the relationship between geometry, movement and wear.
In underground mining, fragmented rock may be transferred between levels through gravity-fed ore passes.
Where material travels through a vertical section without continuous wall contact, abrasive sliding along those surfaces may be reduced.
However, this does not eliminate wear.
Material may strike the walls, rebound, change direction or impact receiving structures.
Calculation 4 – Gravitational Potential Energy
The gravitational potential energy of falling material is:
E = m × g × h
Where:
- E = gravitational potential energy (joules)
- m = material mass (kg)
- g = gravitational acceleration (9.81 m/s²)
- h = vertical drop height (m)
Consider a 100 kg rock falling through 10 metres.
E = 100 × 9.81 × 10
E = 9,810 J = 9.81 kJ
For a 30-metre drop:
E = 100 × 9.81 × 30
E = 29,430 J = 29.43 kJ
| Vertical drop | Potential energy |
|---|---|
| 5 m | 4.91 kJ |
| 10 m | 9.81 kJ |
| 20 m | 19.62 kJ |
| 30 m | 29.43 kJ |
These calculations illustrate the increase in gravitational potential energy with drop height. They do not establish the energy actually absorbed by a particular surface.
The actual impact conditions depend on particle trajectory, collisions, energy losses and contact geometry.
Reducing wall contact in one section of an ore pass may reduce abrasion there, while concentrating impact damage at another location.
For this reason, the entire material-flow path must be considered.
6. Surveying Measures Variation – Engineering Must Understand Wear
Modern surveying technologies allow engineers and surveyors to identify geometric differences with considerable accuracy.
However, a measured variation does not necessarily establish the mechanism responsible for that variation.
A surveyor may report that a truck tray floor has deviated by 15 mm from a reference model.
From a surveying perspective, this is a measurable geometric difference.
From a mechanical engineering perspective, several questions remain.
Has the steel worn away? Has the plate permanently deformed? Was the original geometry different from the reference? Has the structure moved under load?
| Measured condition | Possible engineering explanation |
|---|---|
| 15 mm truck tray floor deviation | Wear, deformation or original geometry |
| 10 mm chute wall displacement | Structural movement, damage or installation variation |
| 8 mm bucket cutting-edge reduction | Potential abrasive material loss |
| Ore pass wall irregularity | Excavation geometry, impact or wear |
| Reduced operating clearance | Deflection, movement or misalignment |
Surveyors provide valuable expertise in dimensional measurement, spatial relationships and geometric accuracy.
However, surveying expertise does not automatically include specialist knowledge of tribology, mechanical wear, material flow or structural behaviour.
Equally, mechanical engineers depend on reliable dimensional information to make defensible engineering decisions.
At Hamilton By Design, we consider these disciplines complementary.
Surveying establishes the geometry. Engineering interpretation establishes what that geometry means for equipment performance.
This is closely related to our article Why Engineers, Designers & Project Managers Are Turning to 3D Scanning and CAD Modelling.
7. Static Geometry Is Not the Same as Operating Geometry
A 3D scan generally captures equipment geometry at a particular moment.
However, equipment may move or deform under operating loads.
A static measurement does not automatically establish the minimum clearance available throughout the operating cycle.
Consider the following simplified example.
| Parameter | Value |
|---|---|
| Initial static clearance | 50 mm |
| Component A movement towards B | 20 mm |
| Component B movement towards A | 15 mm |
Remaining clearance:
50 − 20 − 15 = 15 mm
The original 50 mm clearance has reduced to 15 mm under the assumed operating conditions.
Actual assessments must consider movement direction, load cases, thermal effects, tolerances and dynamic behaviour.
This illustrates why accurate measurement of stationary equipment is only one part of understanding its operating geometry.
A component may be manufactured and installed accurately yet experience excessive wear because its movement or material-flow conditions have not been adequately considered.
8. Modern Wear Measurement Technologies
Different technologies answer different engineering questions.
| Technology | Primary application |
|---|---|
| 3D LiDAR scanning | Large-scale geometry and deformation comparison |
| Metrology scanning | Detailed component geometry |
| Ultrasonic thickness testing | Remaining steel plate thickness |
| Vibration analysis | Rotating equipment condition and dynamic behaviour |
| CAD modelling | Geometry, clearance and modification design |
| Finite Element Analysis | Structural response under defined loads |
| Material-flow simulation | Particle trajectories and contact behaviour |
No single technology provides every answer.
For example, 3D LiDAR scanning measures visible surface geometry but does not directly establish remaining steel thickness.
Ultrasonic thickness testing can measure remaining plate thickness at suitable locations but does not establish the complete three-dimensional deformation of a truck tray.
The appropriate measurement approach depends on the engineering objective.
9. Connecting Wear Assessment with Condition-Based Maintenance
Wear assessment is closely related to maintenance strategy.
Hamilton By Design discusses maintenance approaches in our article ISO 18436-2 Maintenance Strategies.
ISO 18436-2 addresses qualification and assessment of personnel involved in vibration condition monitoring and diagnostics. It is not a truck tray wear assessment standard.
Nevertheless, the broader principles of condition monitoring, repeated inspection and reliability engineering are relevant to managing wear.
Calculation 5 – Establishing a Wear Rate
Assume a steel wear liner has the following measured thicknesses.
| Parameter | Value |
|---|---|
| Initial thickness | 20 mm |
| Remaining thickness | 16 mm |
| Operating period | 1,000 hours |
| Assumed minimum allowable thickness | 10 mm |
Material loss:
20 − 16 = 4 mm
Average wear rate:
4 ÷ 1,000 = 0.004 mm/hour
Equivalent to:
4 mm per 1,000 operating hours
If the wear rate remained constant, the estimated time to reach the assumed minimum thickness would be:
(16 − 10) ÷ 0.004
Estimated remaining operating time = 1,500 hours
This is a simplified linear projection, not a verified remaining-life prediction.
Actual wear may accelerate or reduce as operating conditions, material characteristics and component geometry change.
The minimum allowable thickness must also be established through an appropriate engineering assessment.
10. From Measurement to 3D Modelling and Engineering Improvement
3D scanning and modelling provide opportunities to move beyond documenting existing equipment condition.
Our article 3D Modelling with You Now and 3D Modelling in the Future discusses the importance of digital engineering models and their application to design development.
For wear investigations, a practical workflow may include:
- Establish the wear or deformation problem.
- Capture existing geometry using suitable measurement methods.
- Obtain thickness measurements and other inspection information where required.
- Establish reference geometry from OEM drawings, historical scans or CAD models.
- Review material properties, operating cycles and equipment movement.
- Develop a 3D model of the equipment.
- Investigate material trajectories, clearances and possible modifications.
- Undertake appropriate engineering calculations or analysis.
- Develop replacement components or modification drawings.
- Monitor equipment performance following implementation.
This approach allows the engineering assessment to investigate not only what has changed but also why it has changed.
11. Why Every Wear Assessment Project Is Different
At Hamilton By Design, we recognise that every project is different, and no single wear assessment methodology should automatically be applied to all equipment.
Even two truck trays supplied by the same manufacturer may experience substantially different wear patterns.
Differences may result from:
- Material hardness and particle-size distribution.
- Loading height and impact conditions.
- Material throughput and operating cycles.
- Wear liner materials and configurations.
- Equipment geometry and movement.
- Previous repairs and maintenance.
- Material moisture and flow behaviour.
- Inspection history and available reference information.
A project intended to measure geometric deformation may require different inspection methods and deliverables from one investigating remaining plate thickness or structural fatigue.
Similarly, a transfer chute experiencing repeated liner failure may require an investigation of material trajectory rather than simply increasing wear liner thickness.
An engineering report prepared for one project should not automatically be considered representative of another.
The scope, methodology, calculations and deliverables should be developed around the actual equipment, operating conditions and engineering outcomes required.
12. Why Project Management Matters
Wear assessment is not only a technical challenge. It is also a project management consideration.
Poorly defined scopes, incomplete reference information and uncertainty about deliverables can lead to unnecessary work, delays and additional costs.
Our article Project Management Challenges discusses the importance of accurate information, planning and clear engineering requirements.
Before commencing a wear investigation, the client and engineering team should establish whether the objective is to:
- Measure existing material loss.
- Assess deformation.
- Determine remaining serviceability.
- Investigate recurring wear failures.
- Develop replacement wear protection.
- Modify equipment geometry.
- Improve maintenance planning.
These objectives may require different engineering disciplines, inspection methods, calculations and reporting arrangements.
13. Hamilton By Design – Our Engineering Approach
Hamilton By Design provides mechanical engineering, 3D LiDAR scanning, reverse engineering and CAD modelling services for mining and industrial equipment.
Our approach considers the relationship between measured geometry, material characteristics and equipment operation.
We recognise that accurate measurement is essential, but the value of that information depends on how it is interpreted and applied.
For equipment such as loader buckets, haul truck trays, transfer chutes, hoppers and underground ore passes, an effective assessment may involve understanding material flow, identifying unnecessary contact, reviewing wear protection and investigating geometric improvements.
We believe the appropriate solution is not always to install thicker steel or harder wear liners.
In some applications, improvements to geometry, clearance, material trajectory or maintenance strategy may offer greater long-term benefits.
However, any proposed modification must be assessed against the equipment’s actual operating conditions, structural requirements and intended function.
Conclusion – Measuring Wear Is Only the Beginning
Today’s engineers have access to sophisticated technologies for measuring wear, deformation and equipment condition.
However, the ability to measure a geometric variation does not necessarily establish the cause of that variation.
A surveyor may identify where a component differs from its reference geometry. An inspection specialist may establish remaining plate thickness. A reliability engineer may identify recurring failures.
Mechanical engineering assessment brings these findings together with material behaviour, equipment geometry, operating movement and structural requirements.
The distinction is important.
A loader bucket may handle the combined material throughput of several haul trucks, but this does not automatically establish its relative wear rate.
A truck tray may experience fewer material-handling events but still suffer severe impact damage.
A vertical ore pass may experience reduced wall abrasion in one section while concentrating impact damage elsewhere.
A transfer chute may repeatedly wear through its liners because of an unfavourable material trajectory rather than insufficient liner hardness.
At Hamilton By Design, we believe the engineering objective should extend beyond measuring how much material has been lost. We should investigate why it was lost, whether unnecessary contact can be reduced and how equipment performance can be improved.
Every project is different.
The most appropriate assessment is one developed around the actual equipment, its operating conditions, the available evidence and the engineering outcomes required.
Measurement identifies the condition. Engineering explains the mechanism. Good design addresses the cause.
Related Hamilton By Design Articles
The importance of accurate existing-condition information, scope definition, engineering workflows and project planning.
ISO 18436-2 Maintenance Strategies
Condition monitoring, reliability engineering and maintenance approaches.
3D Modelling with You Now and 3D Modelling in the Future
Using 3D modelling and digital engineering to support equipment design and modification.
Why Engineers, Designers & Project Managers Are Turning to 3D Scanning and CAD Modelling
Capturing existing geometry and converting it into practical engineering models and drawings.
Hamilton By Design
Mechanical Engineering | 3D LiDAR Scanning | Reverse Engineering | 3D Modelling
Website: https://www.hamiltonbydesign.com.au/
Engineering calculations in this article are illustrative examples only. They do not represent verified equipment performance data or substitute for project-specific engineering assessment.
Contact Us – Talk To Us
Our clients:
